In the dynamic realm of laboratory science, the micropipette stands as an indispensable instrument for precise liquid handling across applications ranging from clinical diagnostics to advanced research. However, the repetitive nature of pipetting tasks has led to a surge in work-related musculoskeletal disorders (MSDs), including repetitive strain injuries[1] (RSIs) such as carpal tunnel syndrome and tendinitis.
These occupational health concerns have catalysed a revolution in ergonomic pipetting design, exemplified by innovations like the Rainin LiteTouch System (LTS), which significantly reduces the force required for tip loading and ejection, mitigating the risk of injury and enhancing user comfort.
Introduction to Ergonomic Pipetting
Laboratory work often involves repetitive tasks that lead to musculoskeletal disorders (MSDs). Scientists and lab technicians frequently perform hundreds of pipetting actions daily, sometimes for hours at a time, leading to a high risk of repetitive strain injuries.
Pipetting for more than an hour per day (approximately 300 hours per year) is directly linked to injury development[2] and these injuries don't just affect workers' health and lab safety; they impact precision, technique, and ultimately, scientific results[3].
Ergonomic concerns surrounding traditional pipetting have driven significant innovation in pipette design, with Rainin LiteTouch System and LTS pipettes emerging as a groundbreaking solution that has transformed laboratory work environments worldwide.
The History and Evolution of Laboratory Pipettes
The journey from primitive glass tubes to today's sophisticated instruments represents one of the most important technological progressions in laboratory science[4]. The early days of hazardous mouth pipetting gave way to mechanical solutions, but even these improvements brought their own challenges.
By the 1990s, researchers began documenting alarming rates of hand and wrist disorders among laboratory workers who used pipettes extensively. One study showed that almost 90% of users who continuously operated pipettes for more than an hour daily reported hand and/or elbow disorders[5]. These concerns prompted a critical examination of pipette design and its impact on user health.
The Ergonomic Crisis in Laboratories
Traditional pipetting placed significant stress on the musculoskeletal system. The ratio of muscle force to push or the tip ejection force required during pipetting can be as high as 2.3 - this means that for every newton of force applied to the pipette, the muscles in the thumb experience more than double that strain[6].
What are the physical demands of pipetting and which areas do they affect primarily?
- Thumb strain: Repeatedly pressing pipette plungers and ejection buttons leads to a condition sometimes called "pipettor's thumb" (De Quervain's tenosynovitis), affecting the muscle/tendon unit that puts the thumb in the "hitchhike" position[7]
- Wrist fatigue: Traditional pipettes often require users to work with bent wrists, reducing muscle strength capacity by up to 25%[8]
- Shoulder and neck tension: Improper workstation setup compounds these issues, leading to broader musculoskeletal problems[5]
WHAT IS The Cost of Laboratory Injuries?
Beyond the personal impact on researchers, repetitive strain injuries represent a significant economic burden. How?
Laboratories face increased absenteeism, reduced productivity and potential workers' compensation claims. In the United States alone, the cost of work-related MSDs exceeds $20 billion annually in direct costs, with pipetting-related injuries contributing significantly to this figure in research settings[9].
How does the LiteTouch System Works?

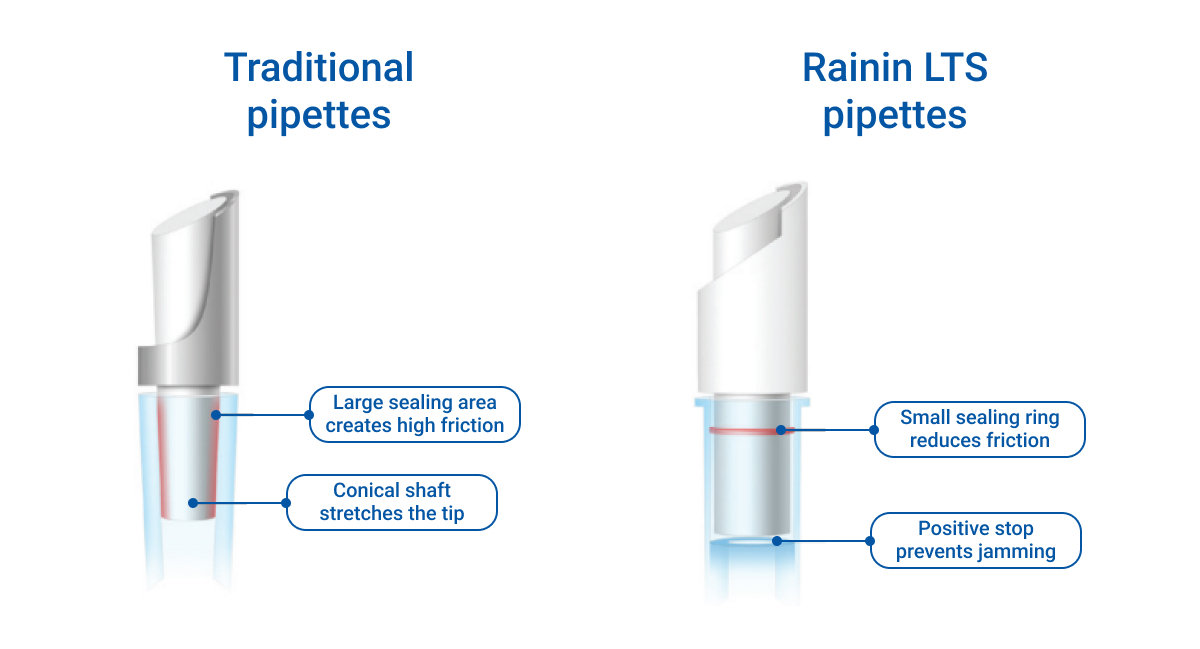

In the early 1990s, Rainin introduced a revolutionary approach that pushed for more ergonomic pipetting with their Rainin LiteTouch System and LTS pipettes. Unlike traditional pipettes that used cone-shaped shafts relying on friction to hold tips firmly, the LTS pipettes featured a fundamentally different mechanism[2].
Traditional pipettes require significant tip ejection force because the tip literally stretches to fit around the shaft. Typical users rock or bang the shaft into the tip to achieve a reliable seal – and the problem is that however much force is used to insert the tips, at least as much force is required to eject them, most of which comes directly from the thumb[9].
By contrast, Rainin LiteTouch dramatically reduced the force required to load and eject tips. The system uses:
- A thin sealing ring near the top of the tip that slides easily over the shaft
- A cylindrical shaft end (that isn't cone-shaped)
- A positive stop inside the tip to guide the shaft to the correct insertion depth
This design almost virtually eliminated friction, creating a firm, air-tight fit with minimal force. The result was significantly reduced strain on the user's hand during both tip attachment and ejection.
what data supports LTS pipettes Benefits?
Studies show that tip ejection forces on traditional pipettes can range from 1 kg to over 8 kg, with an average of 4 kg[8]. The Rainin LiteTouch system reduces tip ejection force by up to 80%, bringing the required force down to as little as 0.6 Newtons[2].
This dramatic reduction makes a significant difference in the physical impact of pipetting. With light springs and minimal tip ejection force required, LTS pipettes reduce fatigue and allow users to concentrate on their work and pipetting technique rather than dealing with cumulative discomfort and compromising personal lab safety.
What was the Broader Impact on Laboratory Ergonomics?
The success of Rainin LiteTouch approach has prompted a broader industry shift towards ergonomic pipetting principles when considering design. Many manufacturers have developed their own versions of low-force tip ejection systems like the Ovation pipette[11], recognizing ergonomics aren't just about comfort, but also directly impact experimental outcomes - researchers using more ergonomic pipettes demonstrate better technique, more consistent sample pick-up and delivery, and ultimately more reproducible data[5].
Making Premium Ergonomics Affordable
Ergonomic pipetting systems have proven their worth many times over; but laboratories often face budget constraints that make equipping their facilities with premium products challenging.
Below are some of the most popular LTS tips for molecular biology and lab workflows today:
🔹 Labcon Eclipse LTS Style Tips
 |
All Eclipse™ tips are made of high quality 100% pure virgin medical grade polypropylene are designed without the thick walls of original equipment tips, providing a softness keeps them much easier to mount |
🔹 Thermo Fisher SoftFit-L™ Tips
 |
SoftFit-L™ pipette tips are specifically designed to fit Rainin LTS- style pipettes. The cylindrical collar and positive-stop design enable an exact fit, reducing attachment and ejection forces. |
🔹 Pipette.com recommends: Oxford Lab LTR Tips
 |
Oxford Lab Products LTR Pipette Tips offer the performance and quality you want without the harsh price tag you expect. Manufactured using a swiss-made mold to ensure that the features are fully and carefully constructed. |
🔹 Pipette.com Custom Manufacture
 |
Custom manufactured for Pipette.com, these pipette tips guarantee tight sealing to prevent any potential leaks with precise and accurate dispensing. With a focus on quality and cost-saving, these tips are a must-have option for applications that do not require tip sterility or achieve it on-site. |
Pipette.com – A Trusted Distributor for Lab Pipette Tips
Pipette.com is one of the most trusted online distributors of lab pipettes, including LTS pipettes, and offer a comprehensive selection of manual, electronic, and multichannel pipettes from top brands.
By also offering premium-quality tips at competitive prices, Pipette.com ensures that the benefits of ergonomic pipetting can reach laboratories of all sizes and budgets, advancing science while protecting those who make it possible with improved lab safety.
Pipette.com is also known for its ISO-accredited calibration and repair services, making it a go-to resource for researchers working in molecular biology, genetics, and clinical diagnostics.
The Future of Ergonomic Laboratory Equipment
The story of Rainin LiteTouch system represents more than just a successful product innovation – it marks a fundamental shift in how we think about laboratory equipment design. As laboratories continue to push the boundaries of scientific discovery, the importance of ergonomic equipment will only grow. The widespread adoption of systems that made LTS pipettes possible demonstrates – prioritizing health and comfort of researchers enhances both scientific outcomes and occupational wellbeing.
References
[1] “Beware of Repetitive Strain Injury (RSI)” Pipette.com
[2] "Reduce Your Risk of Repetitive Injury: Feel the Difference with Rainin LTS" Mettler Toledo
[3] “Ergonomic Pipettes: Improve Lab Comfort, Reduce Fatigue & Enhance Accuracy” Pipette.com
[4] “The Evolution of Micropipettes: A History of Lab Pipetting Innovation” Pipette.com
[5] "World at work: Research and testing laboratories" R.J. Emery & G.L. Delclos
[6] "Analysis of the musculoskeletal loading of the thumb during pipetting – A pilot study" J.Z. Wu
[7] "Smart Pipetting: Using Ergonomics to Prevent Injury" J. Erickson & B. Woodard
[8] "Hand and shoulder ailments among laboratory technicians using modern plunger-operated pipettes" M.G. Bjorksten, B. Almby and E.S. Jansson
[9] "Prevention of Musculoskeletal Disorders in the Workplace" Occupational Safety and Health Administration (OSHA)
[10] "Laboratory work with automatic pipettes: a study on how pipetting affects the thumb" K. Fredriksson
[11] “Results of an Investigation into the Design of an Ergonomic Pipette” VistaLab Technologies
[12] "Oxford LTR Pipette Filter Tips" Oxford Lab Products
